1250 |
||
| optional |

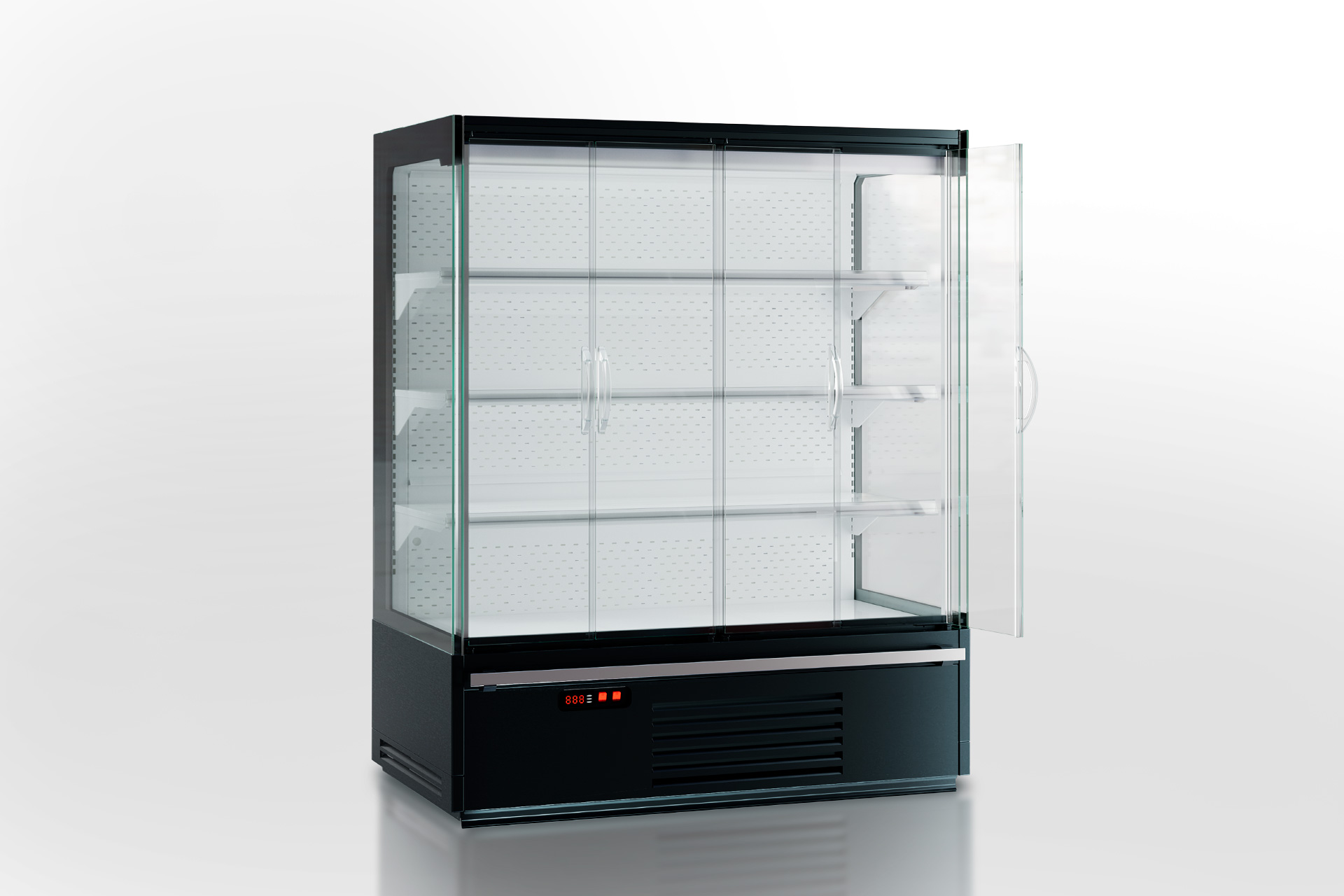

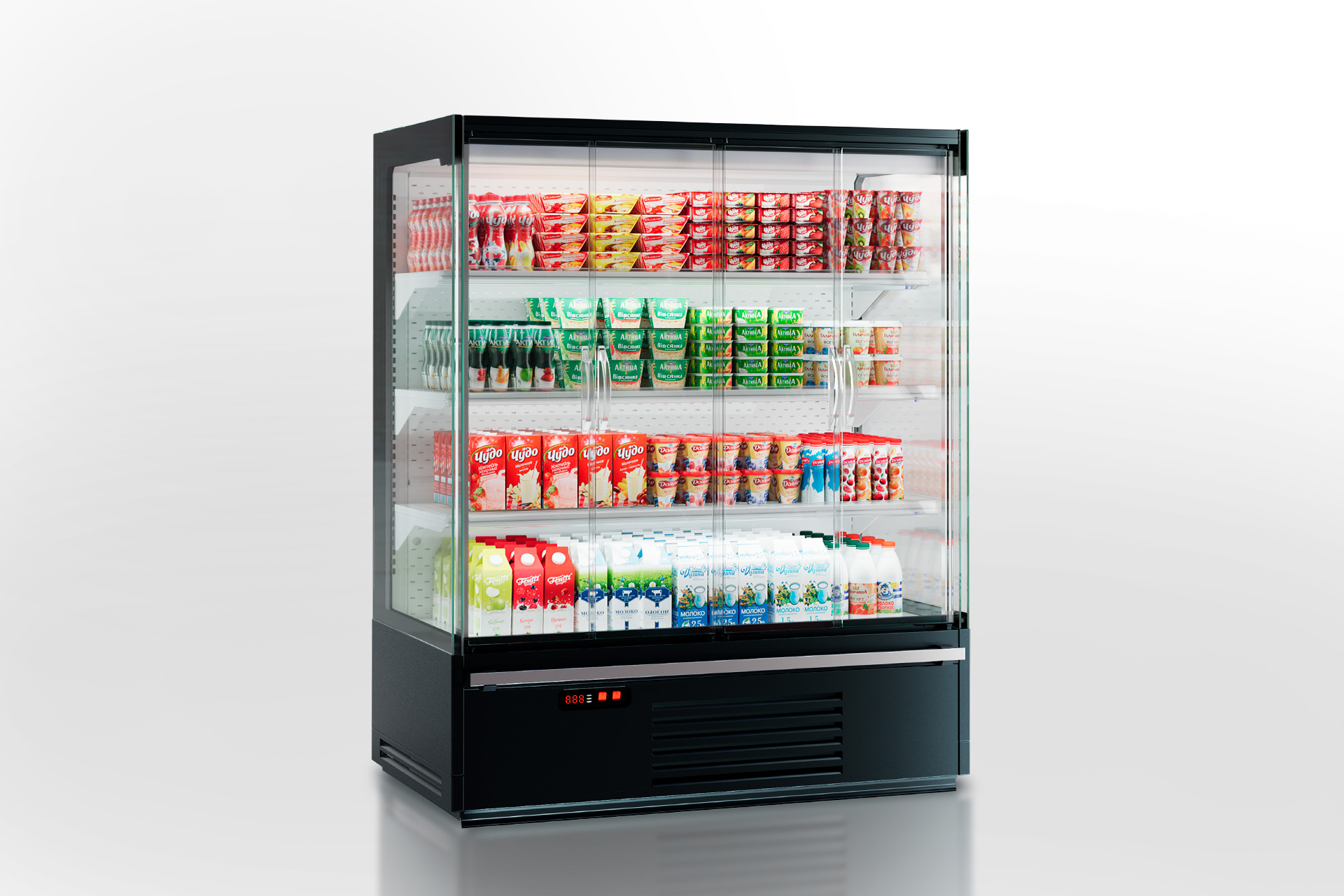

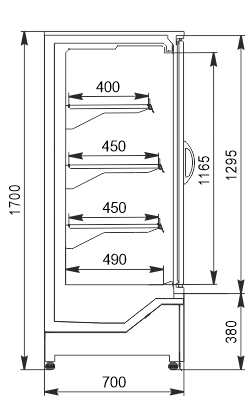

 Indiana cube 2 ASV 070 MT D 170-DLA(article: 2094.АD.ХХ)

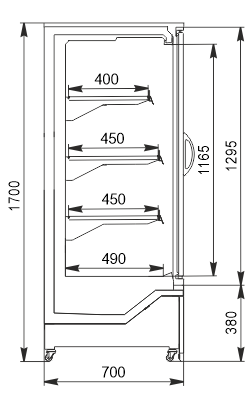

 Indiana cube 2 ASV 070 MT D 170-DLA (option)(article: 2094.АD.ХХ option)
|
 |
The Manufacturer reserves the right to make alterations in the specifications.
| Indiana cube 2 ASV 070 MT D 170-DLA (2094) / Indiana cube 2 ASV 070 MT D 170-DLA (option)(2094) | ||||||||
| Length without sidewalls | mm | 625* | 937* | 1250 | 1500* | 1785* | 2500* | 3750* |
| Thickness of two sidewalls | mm | 60 | ||||||
| Area of display part | m2 | 1,1 | 1,65 | 2,42 | 2,64 | 3,3 | 4,4 | 6,6 |
| Ambient temperature | ˚С | ≤ +25 | ||||||
| Humidity | % | ≤ 60 | ||||||
| Air velocity | m/s | – | ||||||
| Operating temperature | ˚С | 0…+2 / +2…+4 | ||||||
| Temperature class | М1/М2 | |||||||
* – it requires an additional agreement (marked in red)
The Manufacturer reserves the right to make alterations in the specifications.
