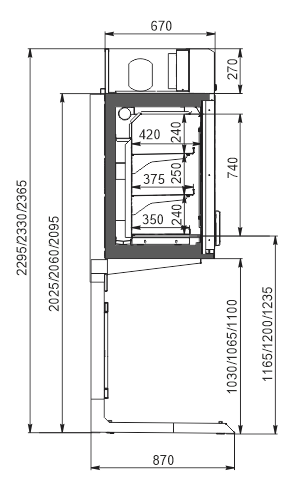

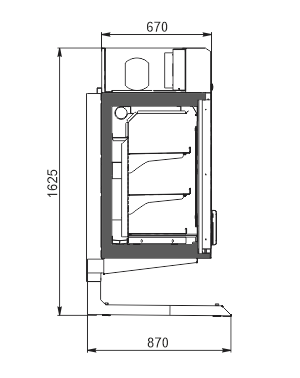

 Kansas VАV 067 HLT D 236-D620A-210(articule: 2311.VA.XX) / Kansas VАV 067 HLT D 236-D740A-250 (articule: 2311.VA.XX)  (Folded view for transportation) |
 |
The Manufacturer reserves the right to make alterations in the specifications.
| Kansas VАV 067 HLT D 236-D620A-210 | Kansas VАV 067 HLT D 236-D740A-250 | ||
| Length with sidewalls | mm | 2100 | 2500 |
| Thickness of two sidewalls | mm | 120 | |
| Effective capacity | l | 620 | 740 |
| Ambient temperature | ˚С | ≤ +25 | |
| Humidity | % | ≤ 60 | |
| Air velocity | m/s | – | |
| Operating temperature | ˚С | -22…-18 | |
| Temperature class | L1 | ||
The Manufacturer reserves the right to make alterations in the specifications.
