Missouri MC 100 deli PSD/PSPD M/A

////Missouri MC 100 deli PSD/PSPD M/A
Refrigerated counters Missouri MC 100 deli PSD DBM/DBA
Refrigerated counter with an increased loading height of merchandise up to 300 mm, thanks to an improved air circulation system.



• Remote refrigeration system version
• Product display depth up to 720 mm
• Lifting and fixing the front glass using gas lifts
• Dynamic cooling system
• Extra refrigerated shelf (temperature on the shelf +2…+4 ˚С)
• Front screen: single or double glazed
• Double glazed rear sliding doors
• Display area LED lighting
• Additional refrigerated storage capacity



Salami & Sausages Cheese Ready-to-serve food

Visualizations and schemes

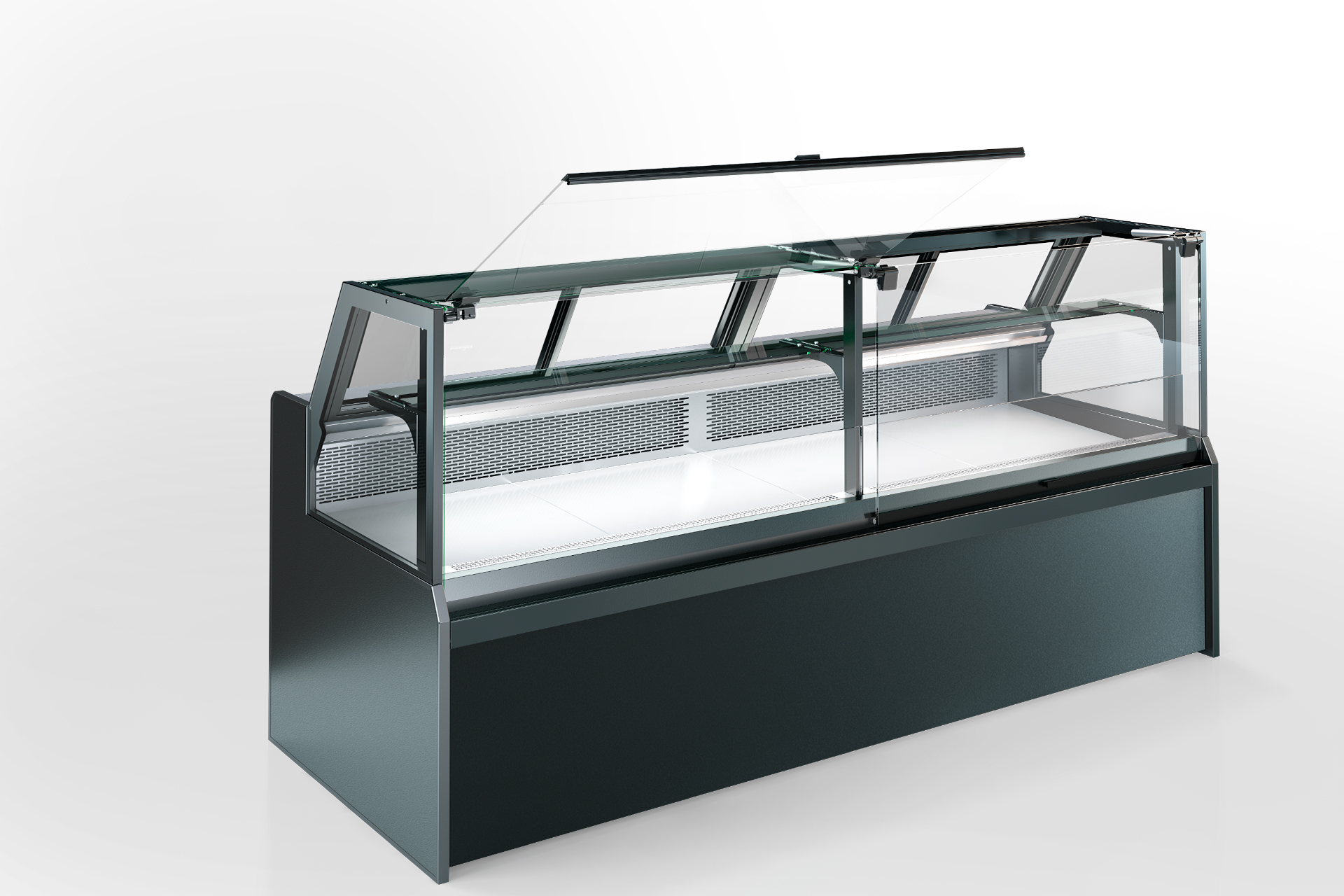

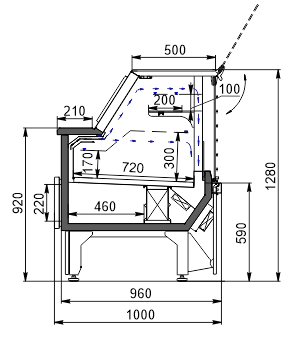

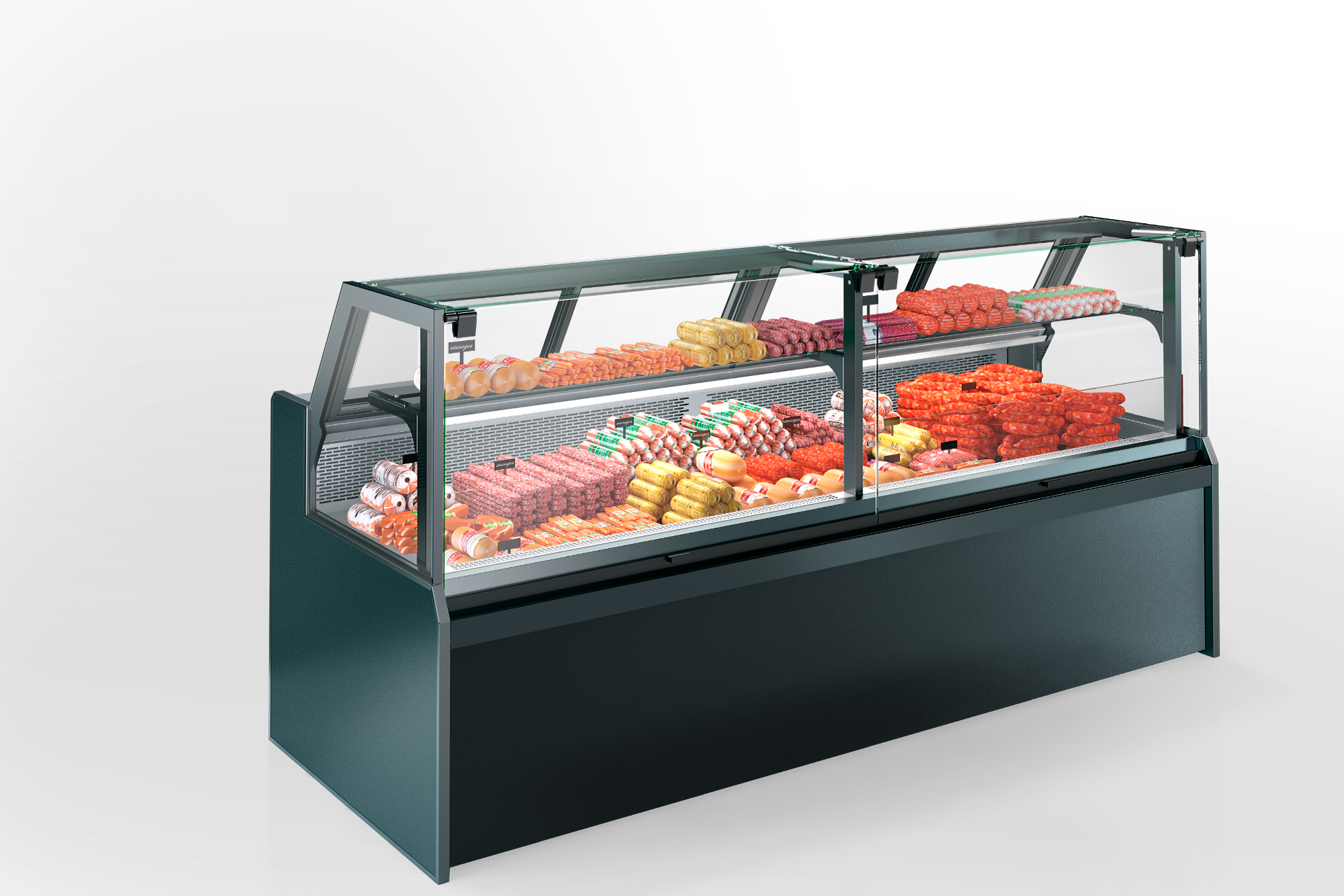

Refrigerated counters Missouri MC 100 deli PSD DBM/DBAMissouri MC 100 deli PSD 130-DBM
(article: 1679.ХХ)
/
Missouri MC 100 deli PSD 130-DBA
(article: 1679.A.ХХ)
Refrigerated counters Missouri MC 100 deli PSD DBM/DBA

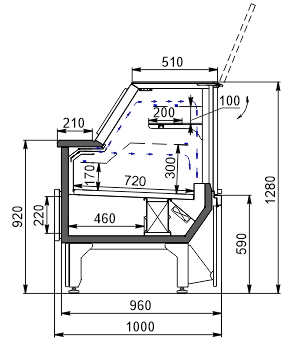

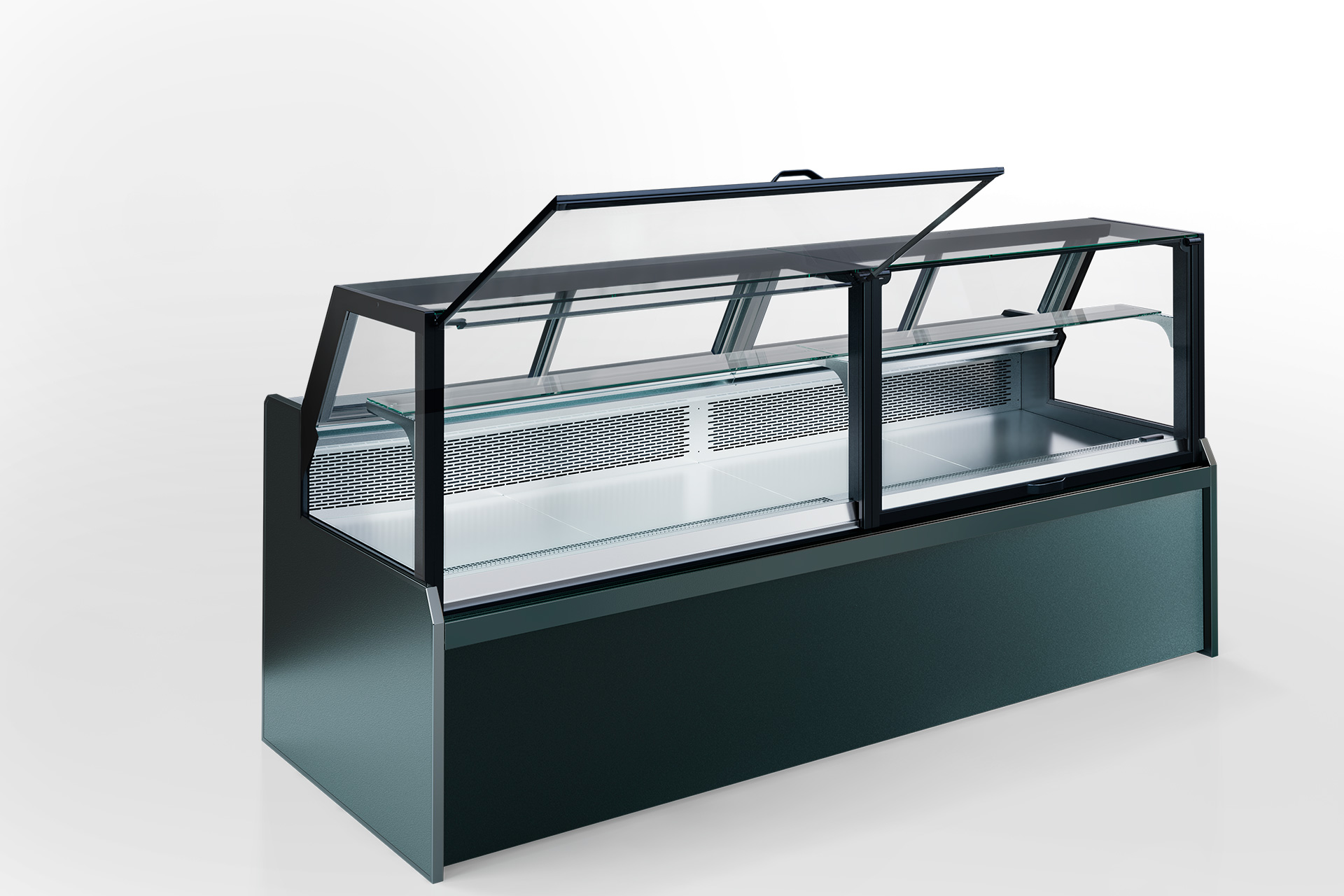

Refrigerated counters Missouri MC 100 deli PSPD DBM/DBAMissouri MC 100 deli PSPD 130-DBM
(article: 1725.ХХ)
/
Missouri MC 100 deli PSPD 130-DBA
(article: 1725.A.ХХ)
Refrigerated counters Missouri MC 100 deli PSPD DBM/DBA

The Manufacturer reserves the right to make alterations in the specifications.

Specifications

  Missouri MC 100 deli PSD 130-DBM
Length without sidewalls mm 937 1250 1500 1875 2500 3125 3750
Thickness of two sidewalls mm 60
Area of display part m2 0,9 1,2 1,4 1,8 2,4 3,0 3,6
Refrigerated box capacity l 97 130 160 190 260 323 390
Ambient temperature ˚С ≤ +25
Humidity % ≤ 60
Air velocity m/s –
Operating temperature ˚С 0…+2 / +2…+4
Temperature class М1/М2
  Missouri MC 100 deli PSD 130-DBА
Length without sidewalls mm 937 1250 1500 1875 2500
Thickness of two sidewalls mm 60
Area of display part m2 0,9 1,2 1,4 1,8 2,4
Refrigerated box capacity l 97 130 160 190 260
Ambient temperature ˚С ≤ +25
Humidity % ≤ 60
Air velocity m/s –
Operating temperature ˚С 0…+2 / +2…+4
Temperature class М1/М2
  Missouri MC 100 deli PSPD 130-DBM
Length without sidewalls mm 937* 1250* 1500* 1875* 2500* 3125* 3750*
Thickness of two sidewalls mm 60
Area of display part m2 0,9 1,2 1,4 1,8 2,4 3,0 3,6
Refrigerated box capacity l 97 130 160 190 260 323 390
Ambient temperature ˚С ≤ +25
Humidity % ≤ 60
Air velocity m/s –
Operating temperature ˚С 0…+2 / +2…+4
Temperature class М1/М2
  Missouri MC 100 deli PSPD 130-DBА
Length without sidewalls mm 937* 1250* 1500* 1875* 2500
Thickness of two sidewalls mm 60
Area of display part m2 0,9 1,2 1,4 1,8 2,4
Refrigerated box capacity l 97 130 160 190 260
Ambient temperature ˚С ≤ +25
Humidity % ≤ 60
Air velocity m/s –
Operating temperature ˚С 0…+2 / +2…+4
Temperature class М1/М2

* – it requires an additional agreement (marked in red)
The Manufacturer reserves the right to make alterations in the specifications.
