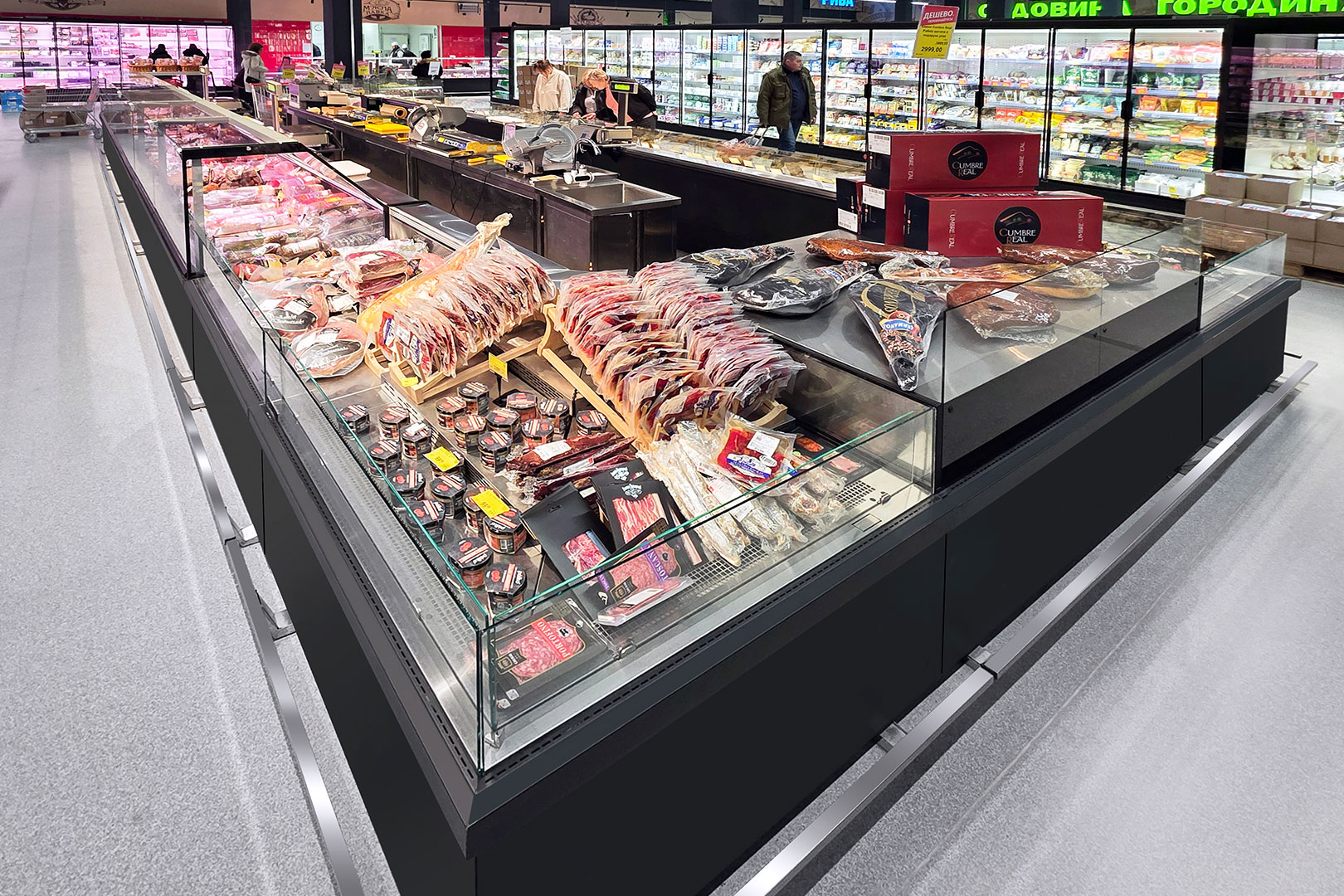

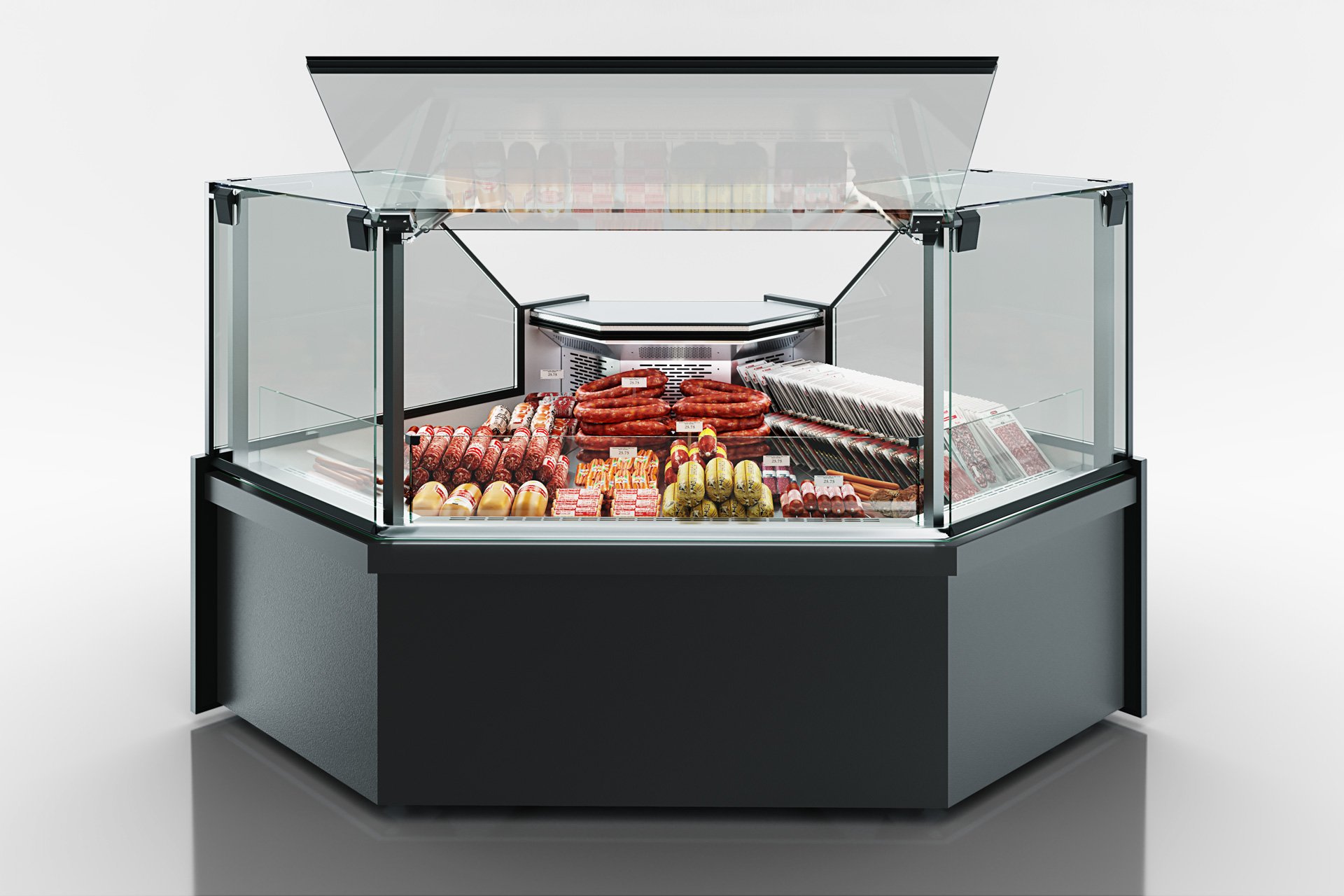

Angular elements of Missouri MC 120 M model range allow building lines of any complexity and structure.
- Connects to the remote refrigeration system
- Dynamic cooling
- LED lighting of display part shelves
- Energy-efficient fans
- Modifications: with/without additional refrigerated box
 |
 |
 |
 Missouri MC 120 deli PS 130-DLM-ES90
(article: 1264.00)
|
 |
 Missouri MC 120 deli PS 130-DLM-IS45
(article: 1498.00)
|
 |
 Missouri MC 120 deli PS 130-DLM-ES45
(article: 1308.00)
|
 |
 Missouri MC 120 deli PS 130-DBM-IS90
(article: 1298.02)
(For butt-jointing with box modules)
 Missouri MC 120 deli PS 130-DLM-IS90(article: 1671.00)
(For butt-jointing with non-box modules)
|
 |
 Missouri MC 120 deli PS 115-DBM-IS90
(article: 1451.02)
|
 |
 Missouri MC 120 deli PS 130-DLM-EL90
(article: 1428.00)
|
 |
|
 |
 Missouri MC 120 deli PS 130-DLM-ER45
(article: 1310.00)
|
 |

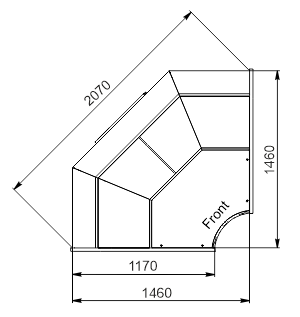

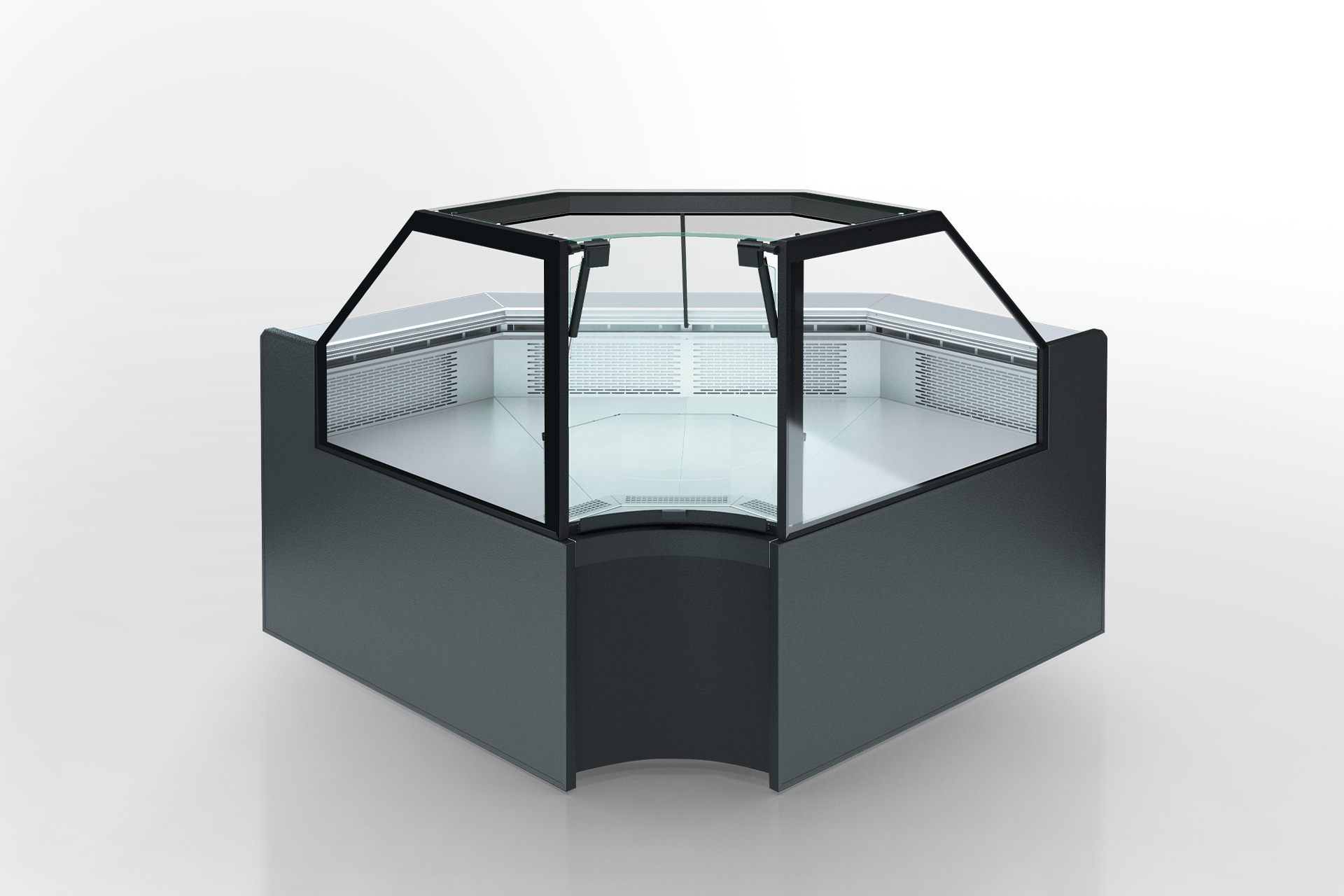

 Missouri MC 120 deli PS 130-DBM-IR90
(article: 1729.00)
|
 |
|
Missouri MC 120 deli self 086-DLM-ES90
(article: 1061.00 self)
|
 |
 Missouri MC 120 deli self 086-DLM-IS90
(article: 1063.01 self)
|
 |
 Missouri MC 120 deli self 086-DLM-IS45*
|
 |
|
Missouri.MC.120.deli.self.086-DLM-ES45*
|
 |
|
 |
|
Missouri MC 120 deli self 086-DLM-ER90
(article: 1309.00 self)
(For butt-jointing with box modules)
 Missouri MC 120 deli self 086-DLM-ER90
(article: 1634.00 self)
(For butt-jointing with non-box modules)
|
 |

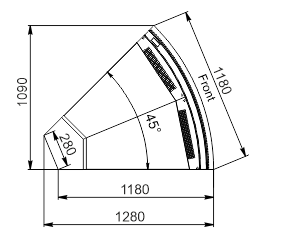

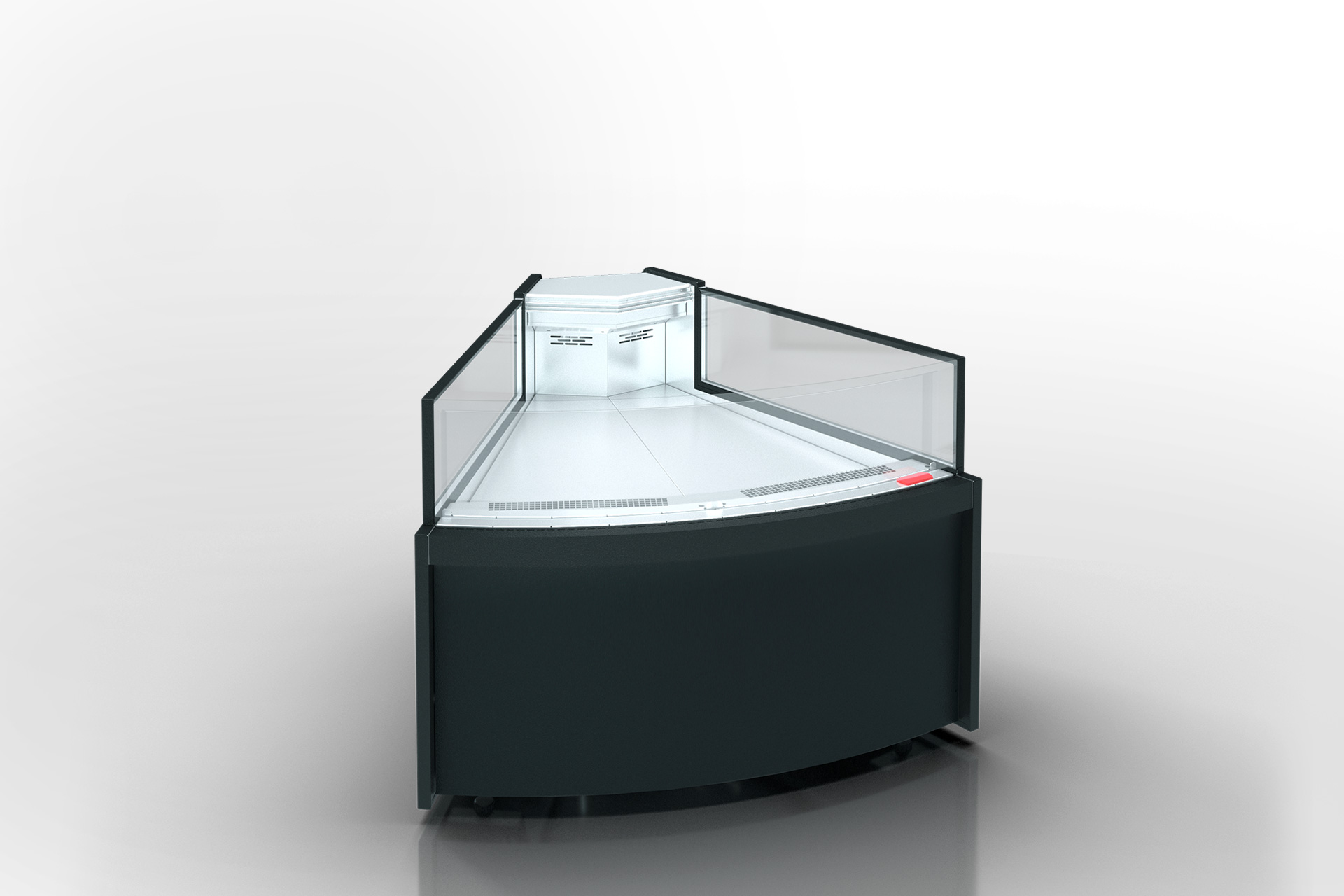

 Missouri MC 120 deli self 086-DLM-ER45
(article: 1731.00 self)
|
|
|
 |
|
 |
|
 |
|
Missouri MC 120 deli PP 130-DLM-ES45
(article: 1287.00)
|
 |
|
Missouri MC 120 deli PP 130-DLM-EL90* |
 [zozo_imageframe shape=”none” shadow=”none” bordercolor=”” borderwidth=”” lightbox=”yes” src=”
|
* – it requires an additional agreement (marked in red)
The Manufacturer reserves the right to make alterations in the specifications.
| Missouri MC 120 deli PS 130 | Missouri MC 120 deli PS 115 | |||||||||
| Angular elements | DLM-EL90 | DLM-ER90 | DLM-ER45 | DBM-IR90 | DLM-ES45 | DBM-IS90 | DLM-IS45 | DBM-IS90 | ||
| Area of display part | m² | 1,4 | 1,2 | 0,8 | 1,4 | 0,8 | 1,4 | 0,8 | 1,4 | |
| Thickness of two sidewalls | mm | 60 | ||||||||
| Refrigerated box capacity | l | – | – | – | 106 | – | 106 | – | 106 | |
| Ambient temperature | ˚С | ≤ +25 | ||||||||
| Humidity | % | ≤ 60 | ||||||||
| Air velocity | m/s | – | ||||||||
| Operating temperature | ˚С | +2…+4 | 0…+2 / +2…+4 | |||||||
| Temperature class | M2 | M1/M2 | ||||||||
| Missouri MC 120 deli self 086 | ||||||||
| Angular elements | DLM-EL90* | DLM-ER90 (1309.00)/(1634.00) | DLM-ER45 (1731.00) | DLM-ES90 | DLM-ES45* | DLM-IS90 | DLM-IS45* | |
| Area of display part | m² | 1,4 | 1,2 | 0,6 | 1,4 | 0,8 | 1,4 | 0,8 |
| Thickness of two sidewalls | mm | 60 | ||||||
| Refrigerated box capacity | l | – | – | – | – | – | – | – |
| Ambient temperature | ˚С | ≤ +25 | ||||||
| Humidity | % | ≤ 60 | ||||||
| Air velocity | m/s | ≤ 0,2 | ||||||
| Operating temperature | ˚С | +2…+4 | ||||||
| Temperature class | M2 | |||||||
| Missouri MC 120 deli PP 130 | ||||||
| Angular elements | DLM-EL90 | DLM-ES90 | DLM-ES45 | DLM-IS90 | DLM-IS45 | |
| Area of display part | m² | 1,4 | 1,4 | 0,8 | 1,4 | 0,8 |
| Thickness of two sidewalls | mm | 60 | ||||
| Refrigerated box capacity | l | – | – | – | – | – |
| Ambient temperature | ˚С | ≤ +25 | ||||
| Humidity | % | ≤ 60 | ||||
| Air velocity | m/s | – | ||||
| Operating temperature | ˚С | +2…+4 | 0…+2 / +2…+4 | |||
| Temperature class | M2 | M1/M2 | ||||
* – it requires an additional agreement (marked in red)
The Manufacturer reserves the right to make alterations in the specifications.
